Drum Sieve

Drum Sieve


Highlights

  • Double Drum Sieve Design:
    Embedded configuration engineered for efficient separation—removes coarse and fine particles while retaining quality product.
  • Robust Weld Mesh Drums:
    Heavy-duty construction ensures durability and consistent performance.
  • Dust-Proof Construction:
    Fully enclosed system prevents dust emission, maintaining a clean and safe work environment.
  • Heavy-Duty Frame:
    Rigid structural build enhances operational stability and extends equipment lifespan.

Technical Specifications

Machine Type GDSA-950 GDSA-1500
Capacity (TPH) 4 – 15 40 – 60
Motor Power – HP / kW 2 / 1.5 5 / 3.7
Motor RPM / Gear Ratio 1440 / 66.5 1440 / 69.3
Voltage (V) / Frequency (Hz) 415 / 50 415 / 50
Machine Weight (Kg) 830 1860

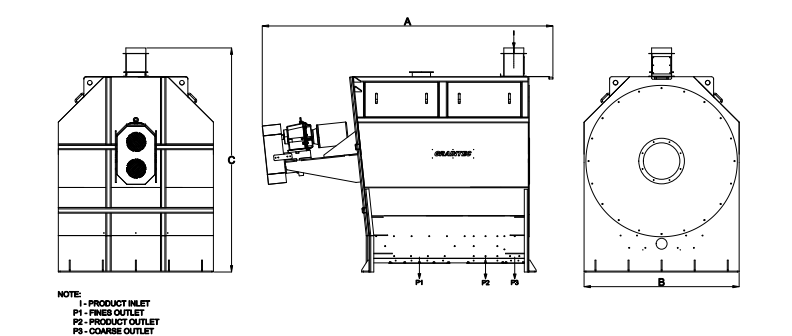

Size (mm)
A 2298 3186
B 1200 1700
C 1731 2457

Key Benefits:

  • Superior Component Quality: Built with high-grade components, the machine offers exceptional resistance to wear and tear, significantly reducing maintenance needs and extending overall service life.
  • Efficient Impurity Removal: Effectively eliminates coarse and oversized impurities, ensuring cleaner output and improved processing efficiency.
