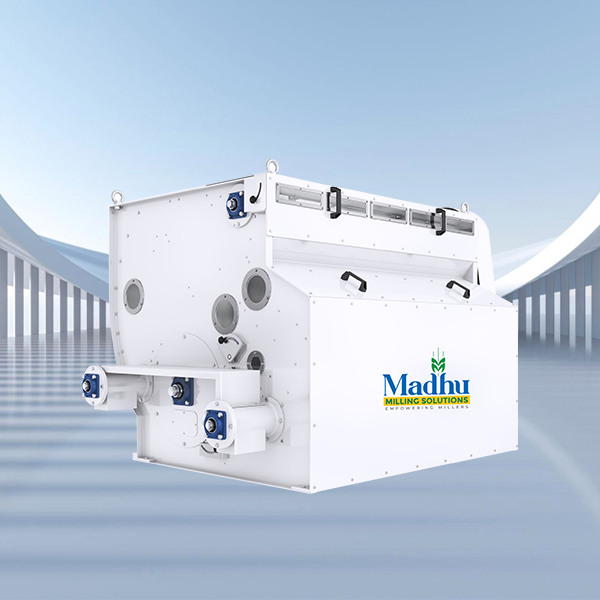

Husk Separator

Husk Separator


Key Features

  • Inbuilt Dual Fan System: Provides precise separation of husk and brown rice, ensuring high operational efficiency.
  • Two-Way Discharge Design: Allows separate and efficient discharge of husk and brown rice for streamlined processing.
  • Dynamically Balanced Blower: Enhances stability and reduces vibration, ensuring smooth and consistent performance.
  • Special Distributor Conveyor Screws: Designed for controlled and uniform product outlet, minimizing spillage and maximizing output.

Specifications

Specification Details
Machine Type DHSH
Capacity (TPH) 6 – 8
Motor Power – HP / kW 5 / 3.7
Motor Speed – Pole / RPM 4 / 1440
Voltage (V) / Frequency (Hz) 415 / 50
Machine Weight (Kg) 810

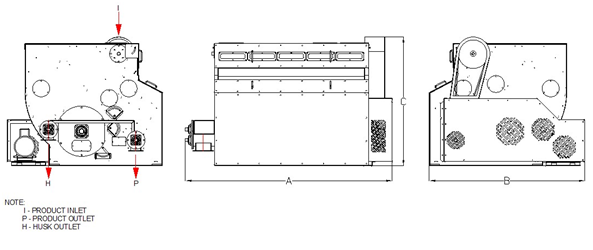

Size (mm) A 2122
Size (mm) B 1595
Size (mm) C 1330

Key Benefits:

  • Special Conveyor distributor is attached above is used to spread product evenly before falling into the Husk Aspirator.
  • Stainless steel structure is provided at husk contacting area to avoid wear and tear
  • Adjustable flops for fine adjustment for husk conveying
