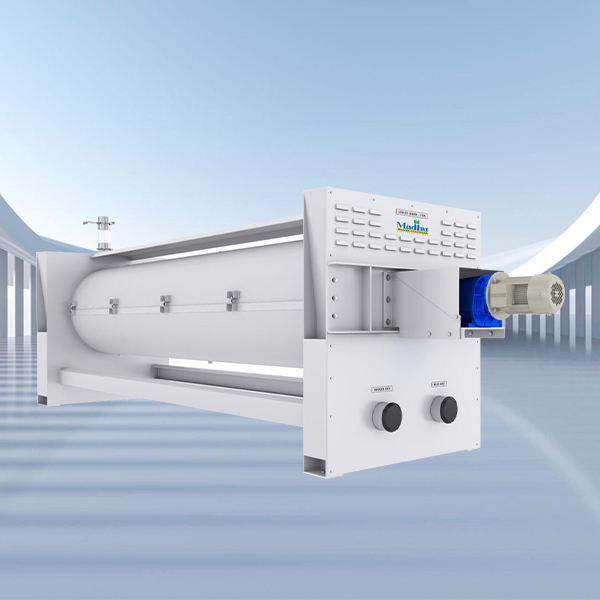

Length Grader

Length Grader


Key Features

  • Sampling Ports for Quality Monitoring
    Integrated sampling ports at each outlet allow real-time monitoring of the separation process, ensuring consistent quality control.
  • Adjustable Broken Grain Separation
    Features adjustable settings to fine-tune the percentage of broken grain separation, enhancing grading accuracy.
  • Sturdy and Rigid Construction
    Designed with a robust, fabricated steel body that ensures smooth, vibration-free operation and long-lasting durability.
  • Optimized for Diverse Rice Varieties
    Specially engineered to process a wide range of rice types including Basmati Rice, Raw Rice, Steam Rice, Parboiled Rice, and Boiled Rice.

Technical Specifications

Specification LGRD – 1D LGRD – 2D
CAPACITY (TPH) 1 2 – 4
MOTOR POWER – HP / kW 2 / 1.5 – 1 NO 2 / 1.5 – 2 NOS
MOTOR SPEED – POLE / RPM 4 / 1440 4 / 1440
VOLTAGE (V) / FREQUENCY (Hz) 415 / 50 415 / 50
MACHINE WEIGHT (Kg) 680 1620

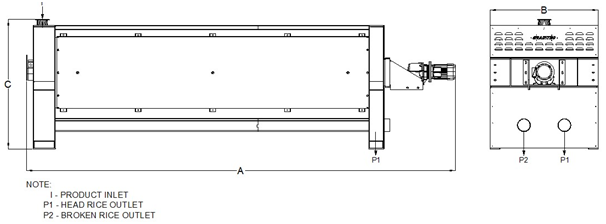

SIZE (mm) A 4235 3657
SIZE (mm) B 1070 1246
SIZE (mm) C 1280 2285

Key Benefits:

  • Precision Engineering with CNC Machining
    The cylinder is fabricated using advanced imported CNC machines, ensuring superior build quality and enhanced efficiency in length-based segregation.
  • Integrated Self-Cleaning Mechanism
    Equipped with an inbuilt self-cleaning system, the unit guarantees consistent performance and uninterrupted, smooth operations, reducing manual intervention.
  • High-Accuracy Tear Drop Indents
    Specially designed tear drop-shaped indents significantly improve the accuracy of separation, enabling optimal classification of materials.
  • Maintenance-Free Direct-Coupled Drive
    Utilizes direct-coupled geared motors in place of traditional belt or chain drive systems, minimizing maintenance requirements and improving operational reliability.
