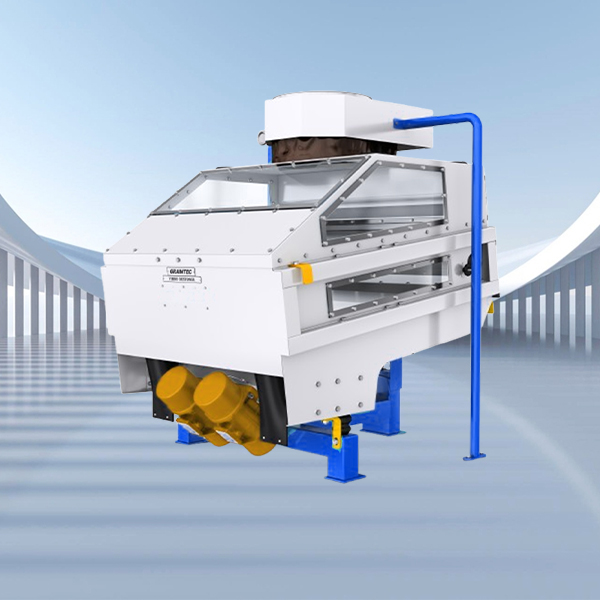

Vibro De-Stoner

Vibro De-Stoner


Key Features

  • Superior Separation Efficiency: Effectively separates high-density impurities such as stones, pebbles, glass, and metals.
  • Integrated Dust Aspiration System: Enclosed circuit design efficiently removes dust and lightweight contaminants like immature grains.
  • Adjustable Operational Settings: Machine inclination, airflow volume, and vibration intensity can be easily fine-tuned for optimal performance.
  • Advanced Vibro Motors: Operate with low noise, extended lifespan, and require virtually no maintenance.
  • Robust Construction: Built with a heavy-duty, rigid frame for durability and long-term performance in demanding environments.

Technical Specifications

Specification GVDA 065/120-1D GVDA 065/120-2D GVDA 120/120-2D
Vibro Motor – HP / kW 0.5 / 0.35 – 1 NO 0.5 / 0.35 – 1 NO 0.5 / 0.35 – 2 NOS
Vibro Motor Speed – Pole / RPM 6 / 1000 6 / 1000 6 / 1000
Weight (Kg) 270 350 530

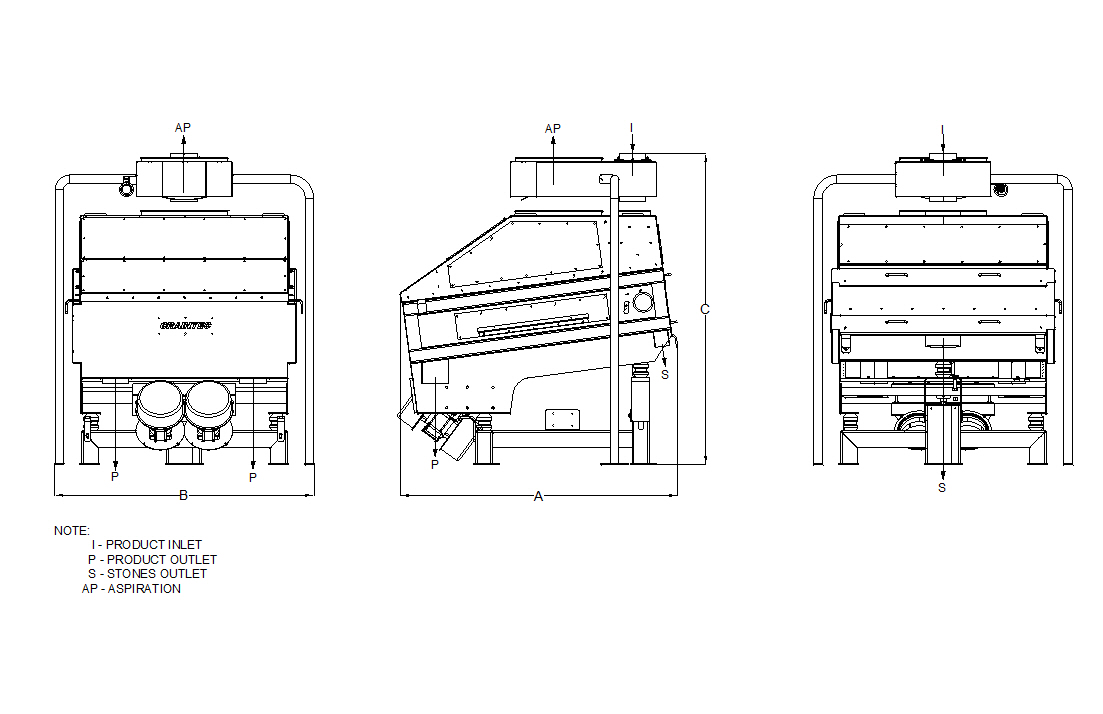

Size (mm) A 1569 1603 1616
Size (mm) B 911 911 1511
Size (mm) C 1558 1804 1811
