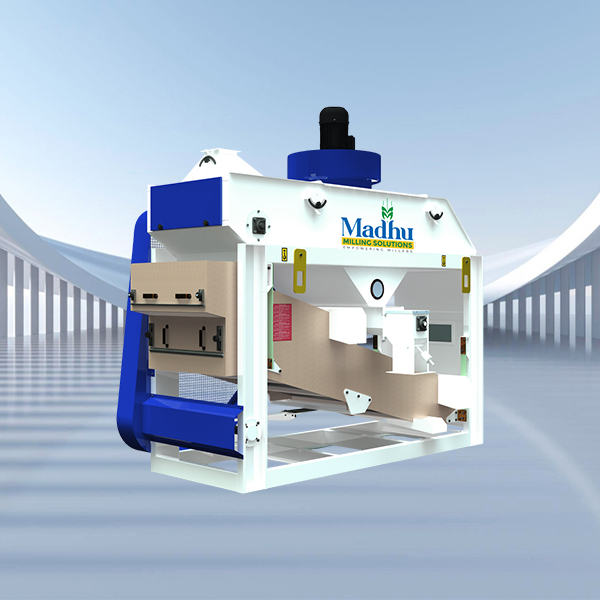

Grainpre-Cleaner

Grainpre-Cleaner-PCLR


Highlights:

  • Integrated suction blower for multiple aspiration stages, enhancing cleaning efficiency.
  • Fully enclosed, dust-proof construction ensures a cleaner and safer working environment.
  • Robust and heavy-duty frame for exceptional durability and extended service life.
  • Sieve box features self-cleaning rubber balls to maintain optimal performance and reduce maintenance.

Technical Specifications

Machine Type PCLR-80-1D PCLR-100-2D PCLR-150-1D PCLR-150-2D PCLR-150-3D
Capacity (Base On) Bulk Density 8 – 10 12 – 15 15 – 20 20 – 30 30 – 40
Capacity (Base On) Bulk Density 10 – 15 15 – 20 20 – 25 25 – 30 40 – 50
Motor (Sieve Boat) 1.5 HP 2 HP 2 HP 3 HP 5 HP
Fan Motor 5 HP 7.5 HP 7.5 HP 10 HP 15 HP
Machine Weight (Kg) 950 1100 1450 1950 2250

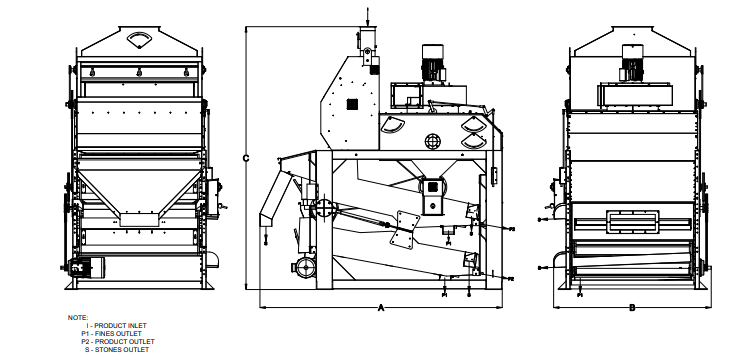

Size (mm) A 3120 3120 3120 3120 3120
Size (mm) B 1330 1530 2030 2030 2030
Size (mm) C 2880 3385 2980 3385 3835

Key Benefits:

  • Efficient Pre-Cleaning: Fitted with a round scalperator for effective removal of sticks, straws, and other coarse impurities.
  • Enhanced Durability: GI-coated sieves increase screen life and provide excellent resistance against corrosion.
