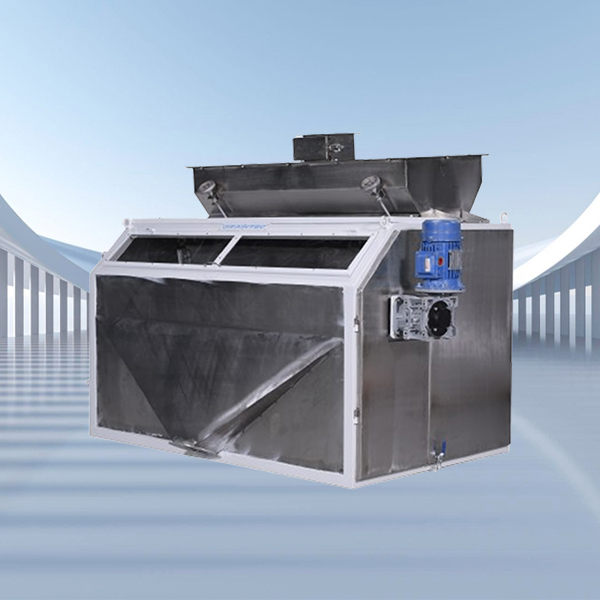

Mud Ball Separator

Mud Ball Separator


Highlights

  • User-Friendly Design:
    Belt tightening and mud ball flap adjustments can be conveniently made from outside the machine, ensuring easy maintenance and smooth operation.
  • Efficient Power Usage:
    Equipped with a single 0.5 HP geared motor (Single-phase option available), offering energy-efficient performance with low power consumption.
  • Magnetic Mud Ball Destoner:
    Features skirting on all three sides of the conveyor belt to prevent seed spillage and avoid clogging of the magnetic roller, enhancing separation efficiency.
  • Optimized Output Collection:
    Comes with a sturdy stand of suitable height and a bag holding clamp, allowing easy and organized collection of clean seeds and rejected mud balls.

Technical Specifications

Machine Type GMBA-150
Capacity (TPH) 4
Drive Motor Power – HP / kW 1 / 0.75
Drive Motor Speed – Pole / RPM 4 / 1390
Gear Box Ratio / Output RPM 20 / 69.5
Vibro Motor Power – HP / kW 0.2 / 0.12
Vibro Motor Speed – Pole / RPM 6 / 1000
Voltage (V) / Frequency (Hz) 415 / 50
Machine Weight (Kg) 720

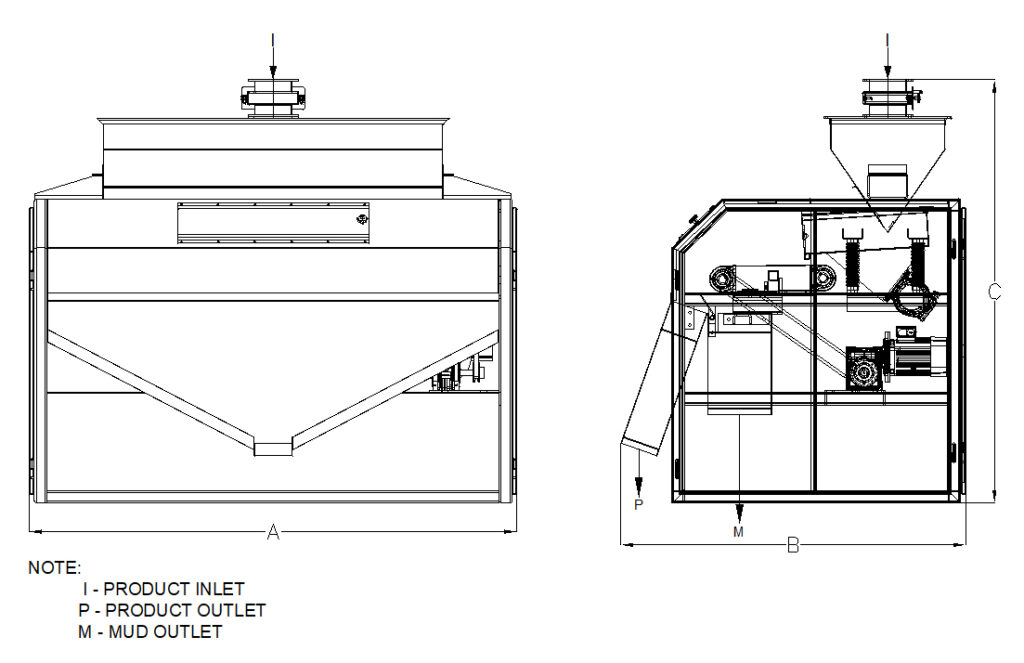

Size (mm)
A 1940
B 1372
C 1683

Key Benefits:

  • Easy to operate
  • Dust proof body
  • Low power consumption
  • Easy to move
  • Pull & slide belt changing systems
  • Ideal finishing
