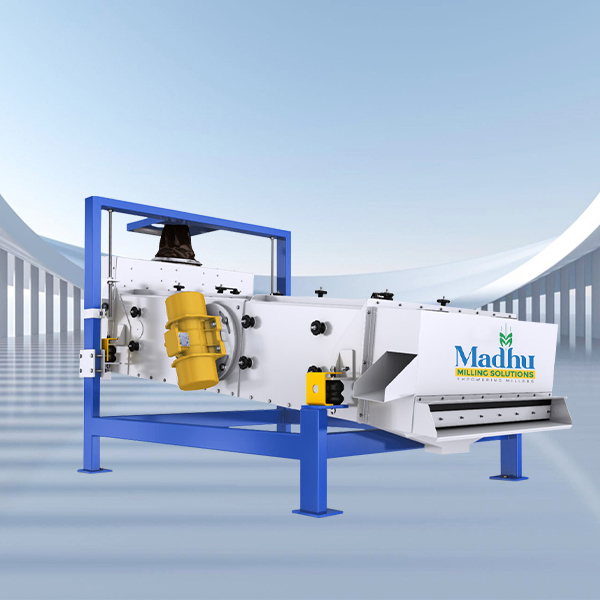

Vibro Classifier

Vibro Classifier


Key Features

  • Adjustable Sieve Box Inclination
    Inclination can be varied based on product type and separation requirements for optimal performance.
  • Split-Design Wooden Frames
    Engineered with a split design, the wooden frames allow for quick and easy sieve replacement.
  • Integrated Aspirator Box
    Comes equipped with an aspirator box to effectively remove dust particles, ensuring a cleaner operation.
  • Self-Cleaning Sieve Boxes
    Rubber balls are incorporated within the sieve boxes for continuous self-cleaning, ensuring consistent efficiency and minimal downtime.

Technical Specifications

Machine Model GCLA-100/100-1D GCLA-100/100-2D GCLA-100/200-2D GCLA-100/200-3D GCLA-150/200-2D
Capacity (TPH) Up to 2 2 – 3 4 – 10 4 – 10 10 – 15
Vibro Motor – HP / kW 0.3 / 0.25 – 2 NOS 0.5 / 0.35 – 2 NOS 0.5 / 0.35 – 2 NOS 1.0 / 0.75 – 2 NOS 1.0 / 0.75 – 2 NOS
Vibro Motor Speed – Pole / RPM 6 / 1000 6 / 1000 6 / 1000 6 / 1000 6 / 1000
Voltage (V) / Frequency (Hz) 415 / 50 415 / 50 415 / 50 415 / 50 415 / 50
Weight (Kg) 535 556 665 770 935

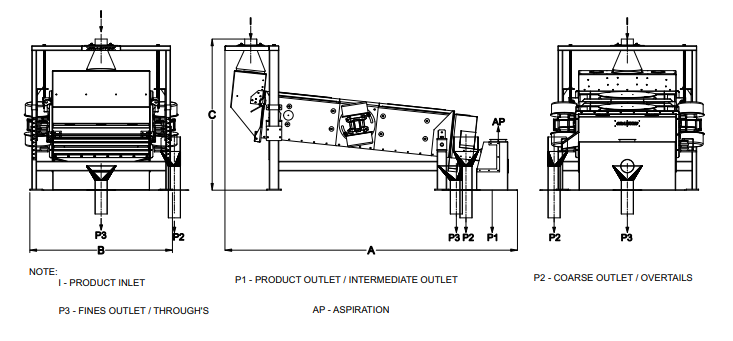

Size (mm) A: 2040
B: 1482
C: 1443
A: 2080
B: 1482
C: 1465
A: 3081
B: 1482
C: 1570
A: 3128
B: 1482
C: 1770
A: 3148
B: 2046
C: 1742

Key Benefits:

  • Precision Screening: Equipped with accurately engineered screens that ensure efficient cleaning across a wide variety of grain types.
  • Low Maintenance Design: Constructed with minimal or no moving parts, reducing wear and tear and ensuring long-term reliability with minimal upkeep.
