Thick & Thin Grader

Thick & Thin Grader


Key Features

  • Quick and Easy Screen Changeover:
    Enables fast transition between different screen sizes, operable by a single individual with minimal downtime.
  • Wide Range of Slot Sizes:
    Screens are available in various slot sizes to suit different separation requirements.
  • Versatile Sorting Capability:
    Efficiently separates immature grains, broken pieces, and other unwanted materials for improved product quality.

Technical Specifications

Specification TGRD – 2D TGRD – 4D TGRD – 6D
CAPACITY (TPH) 3 – 4 5 – 6 8
MOTOR – HP / kW 1 / 0.75 2 / 1.5 2 / 1.5
MOTOR POLE / OUTPUT RPM 4 / 68 4 / 68 4 / 68
VOLTAGE (V) / FREQUENCY (Hz) 415 / 50 415 / 50 415 / 50
MACHINE WEIGHT (Kg) 370 610 975

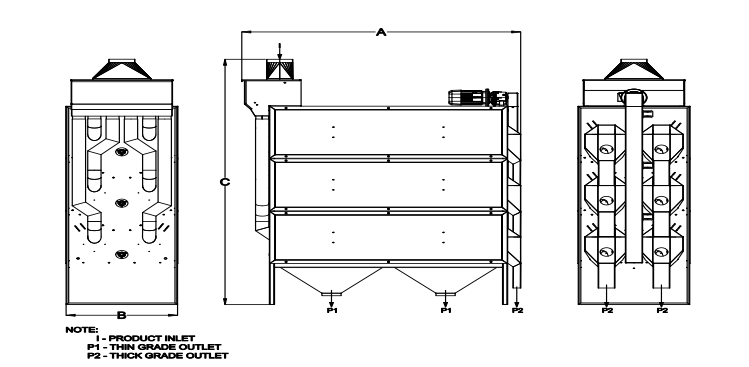

SIZE (mm) A 2178 2178 2178
SIZE (mm) B 870 870 870
SIZE (mm) C 1570 2252 2867

Key Benefits:

  • Superior Separation Efficiency:
    Effectively removes over-sized and under-sized grains, ensuring a cleaner final product.
  • Self-Cleaning Mechanism:
    Integrated rotating cleaning brushes prevent slot clogging, ensuring continuous and smooth operation.
  • Accurate Grading Performance:
    Delivers high efficiency through precise and consistent grading, enhancing overall productivity.
