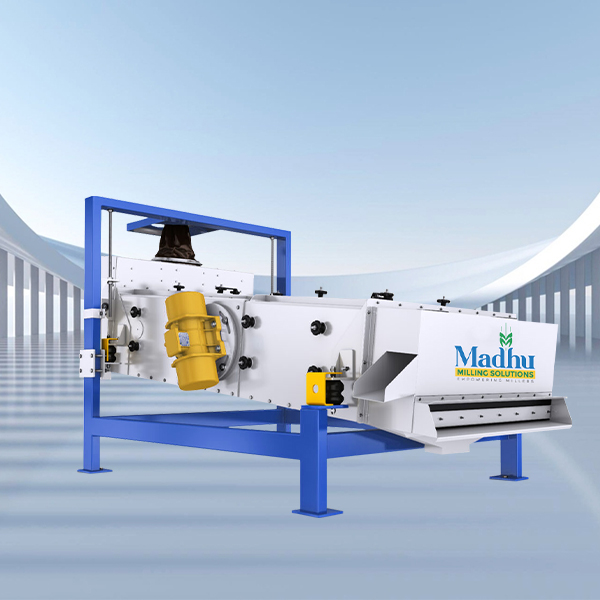

Vibro Classifier

Vibro-Classifier


Key Features :

  • Adjustable Sieve Box Inclination: The inclination angle can be modified based on the product type and separation requirements, enhancing sorting precision.
  • Split Wooden Frame Design: Wooden frames are designed in split sections, allowing for quick and easy sieve replacement.
  • Integrated Aspirator Box: Efficiently removes dust particles to ensure a cleaner operation and improved product quality.
  • Self-Cleaning Mechanism: Sieve boxes are fitted with rubber balls that facilitate continuous self-cleaning, maintaining optimal screening efficiency.

Specifications

Machine Model GCLA-100/100-1D GCLA-100/100-2D GCLA-100/200-2D GCLA-100/200-3D GCLA-150/200-2D
Capacity (TPH) Up to 2 2 – 3 4 – 10 4 – 10 10 – 15
Vibro Motor – HP / kW 0.3 / 0.25 – 2 NOS 0.5 / 0.35 – 2 NOS 0.5 / 0.35 – 2 NOS 1.0 / 0.75 – 2 NOS 1.0 / 0.75 – 2 NOS
Vibro Motor Speed – Pole / RPM 6 / 1000 6 / 1000 6 / 1000 6 / 1000 6 / 1000
Voltage (V) / Frequency (Hz) 415 / 50 415 / 50 415 / 50 415 / 50 415 / 50
Weight (Kg) 535 556 665 770 935

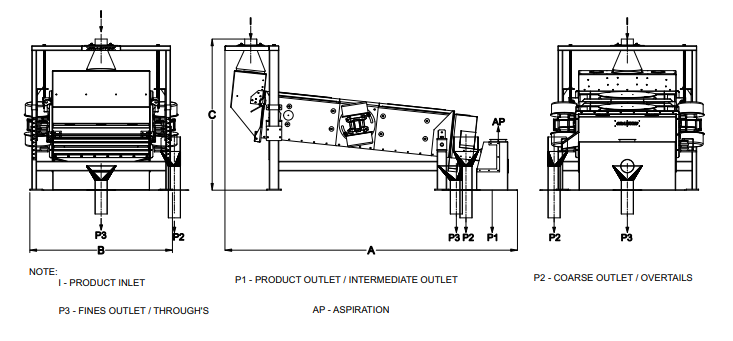

Size (mm) A: 2040
B: 1482
C: 1443
A: 2080
B: 1482
C: 1465
A: 3081
B: 1482
C: 1570
A: 3128
B: 1482
C: 1770
A: 3148
B: 2046
C: 1742

Key Benefits:

  • Provided with precise screens ensures effective clean a wide range of grains.
  • Designed for minimal maintenance as no relatively moving parts
